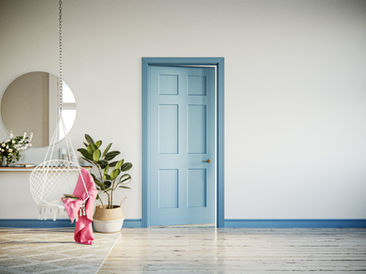

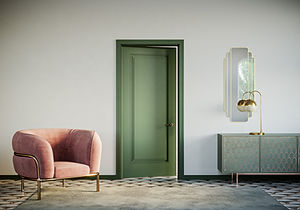

Panel Doors

Three Commonly Identifiable & Recognised Styles

The AckroLam Panel door is made using the same construction as the flush door for the stile and rail framing, varied slightly for the panel by using the AckroShield as the core with an MDF veneered or solid wood facing.

The door construction is entirely bonded and assembled using our AckroBond high temperature adhesive.



Our Range

We make to order so there is no ‘standard’ door size, but we show here a range of our most commonly produced profiles patterns and designs.



These provide a guide, with almost any mix and match of panel and moulding detail being possible.  The limits therefore are almost entirely your imagination.



If you do not see here what you need, please contact us and we will be pleased to talk you through the process.  Our chances of being able to help are, as Crocodile Dundee would say…. ”better than average”

Stock Components

All our doors are made to order using stock Stile, Rail & Muntin components in the dimensions below. We are happy to produce other sections to your requirements though these may add slightly to the cost and production time.



  • Stiles, Muntins and top and intermediate upper rails (on 5 or 6 panel doors) = 125mm wide

  • Middle or Lock rails = 200mm wide

  • Bottom rails = 225mm wide

Availability

AckroLam, EcoLam & EcoGuard Panel Doors

  • Can be supplied as doors only (Fire doors will require appropriate frames and intumescent seals which we will specify and supply if required)

  • Door sets  (door complete with frame, seals, Ironmongery and Architrave sets if required)

  • Factory finished or primed for painting on site.

One Stop Shop

We are able to offer all that you need for the complete door set or assembly package:

  1. Frames

  2. Architraves & skirtings

  3. Intumescent seals

  4. Glazing

  5. Ironmongery

Fire Ratings - Panel Doors

The most onerous design when subjected to fire testing is the Shaker, having the thinnest panel unfortified by mouldings.  This allows any additional panel thickness or moulding to be added, enhancing rather than compromising the performance of the door.



P30

AckroLam P30/44-18 – Half Hour fire rated to BS 476 pt 22

  • Stiles & Rails 44mm - Particleboard, AckroShield & wood combination.



  • Panels - 18mm – AckroShield, thickness varying depending on design.



Standard or common stile / rail dimensions

  • Stiles/Top rail = 125, Bottom rail = 225, Mid or lock rail = 200, intermediate upper rail = 125, variations available to order.

  • Available from one to six panel configurations or bespoke designs to order.

Frames

  • Available with Softwood, Hardwood or AckroFrame frames.

  • Minimum frame dimensions

    • 32mm x 95mm for softwood or hardwood.

    • 40mm x 95mm for AckroFrame.

    • Available with extension linings to suit thicker wall constructions such as in listed / heritage buildings.

Permissible configurations and sizes

Fire tested in pair and single form up to nom. 2400 high overall frame.

  • Single widths up to 915mm

  • Equal & unequal pairs up to 838mm for each leaf

P60

AckroLam P60/54-24 -  One Hour fire rated to BS 476 pt 22



  • Stiles & Rails 54mm - Particleboard, AckroShield & wood combination.

  • Panels – 24mm – AckroShield, thickness varying depending on design.



Standard or common stile / rail dimensions

  • Stiles/Top rail = 125, Bottom rail = 225, Mid or lock rail = 200, intermediate upper rail = 125, variations available to order.

  • Available from one to six panel configurations or bespoke designs to order.



Frames

  • Available with Hardwood or AckroFrame frames. Min. frame thickness = 32mm, widths over 95mm to suit site requirements/wall construction.



  • Available with extension linings to suit thicker wall constructions such as in listed/heritage buildings.

  • Minimum frame dimensions

    • 32mm x 95mm for hardwood.

    • 40mm x 95mm for AckroFrame.

    • Available with extension linings to suit thicker wall constructions such as in listed / heritage buildings.



Permissible configurations and sizes

Fire tested in pair and single form up to nom. 2400 high overall frame.

  • Single widths up to 915mm

  • Equal & unequal pairs up to 838mm for each leaf.

Wall details shown in our sections are not definitive or guidance on appropriate structures.  Door sets are compatible with approved wall structures of corresponding fire resistance duration.
